Galvanized Forged 5/8"x 7" Long Shank Line Post Studs For Wood Poles and Cross-Arms

Line Post Studs

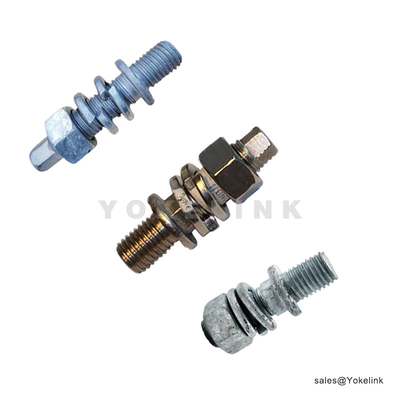

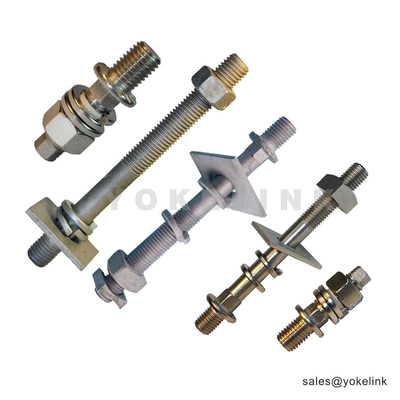

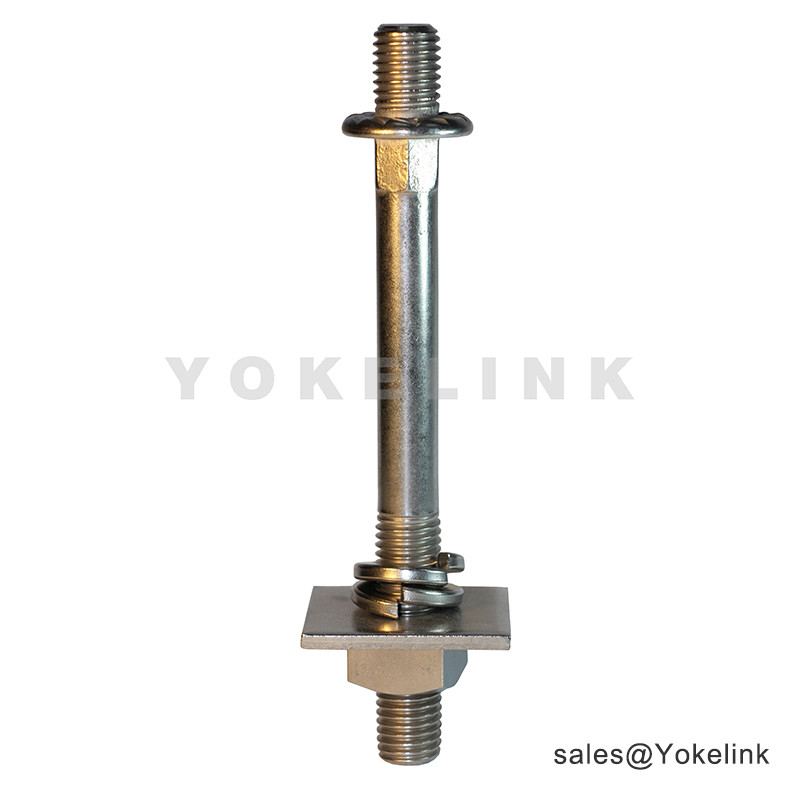

Line post insulator studs are the threaded rods or bolts that are used to attach line post insulators to the supporting structure or cross arm of a power transmission or distribution line. The studs are typically coated with hot dip galvanized to protect them from environmental factors .The insulator is mounted on the stud with a locking nut and other fastening mechanism to ensure a secure connection between the insulator and the supporting structure.

Yokelink Line Post Insulator Studs are used to mount insulators to wood crossarms(Long shank) and insulator plates (Short Shank). All components are Hot dip galvanized to meet ASTM A153 specification.

Features:

3/4"-10UNC insulator thread x 1-1/8" long
Serrated flange
Hex collar
9" long shank has 4" thread length
Includes one single-coil lock washer, one 4" square washer, square nut and MF lock nut
Gavanized steel per ASTM A-153

Line Post Studs Specification:

Line Post Studs Application:

1.Power Transmission and Distribution

Insulator Mounting: They are primarily used to mount insulators to crossarms and poles. This application ensures that the conductors are effectively insulated from the poles and crossarms, preventing electrical leakage and ensuring the safety and stability of the power transmission system.
Hardware Connection: Line post studs are used to connect various hardware components in power transmission lines.They provide a secure and reliable connection point, enabling these components to work together to support and protect the power lines.

2.Telecommunication Industry

Supporting Communication Equipment: In some cases, line post studs can be used to support communication equipment on poles. They offer a stable mounting point for these devices, ensuring they are properly positioned and can function effectively.
Cable Attachment: They can also be used to attach communication cables to poles. Ensuring the smooth transmission of communication signals.

Buy Line Post Studs From Yokelink

Yokeline Line post studs offer several useful features. They are typically made from durable materials like galvanized steel, ensuring resistance to corrosion and a long lifespan, even in harsh outdoor environments. Their design allows for easy and secure attachment of insulators, brackets, or other components, providing a stable connection point. The studs come in different lengths and thread specifications to suit various applications and mounting requirements. With their strong mechanical properties, they can withstand significant mechanical loads, ensuring the reliability of power transmission, telecommunication, or fencing systems.
