15kVA 25 kVA 37.5kVA 50 kVA Single-Phase Pole-Mounted Transformer for Rural Power Supply

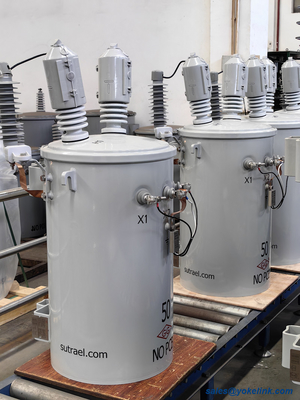

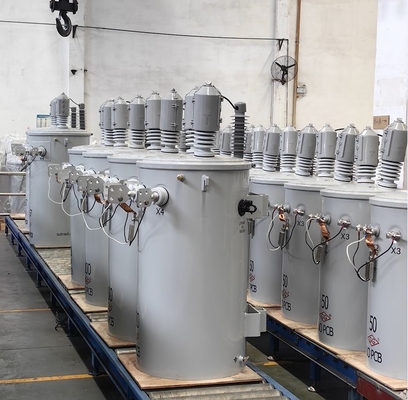

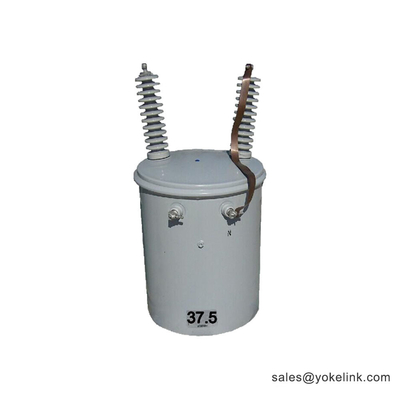

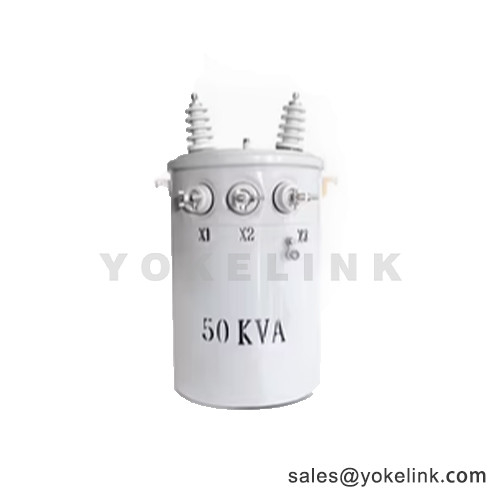

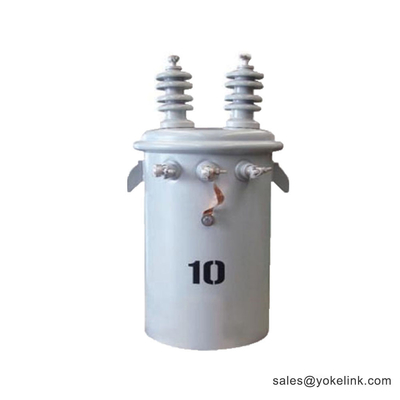

Single-Phase Pole-Mounted Distribution Transformer

Yokelink Single-Phase Pole-Mounted Distribution Transformer offers several key features. Firstly, it is compact and designed for easy pole mounting, saving ground space and making it suitable for various urban and rural settings. Its single-phase configuration is ideal for powering residential and small commercial loads.
High efficiency is a crucial trait, reducing power losses and operating costs over time. It is built with quality insulation materials to ensure reliable performance and a long lifespan, even in harsh environmental conditions. The transformer also has excellent voltage regulation, maintaining a stable output voltage to protect connected electrical devices.
Safety features are incorporated, such as proper grounding and protection against overloads and short circuits. It has a rugged enclosure that provides protection against external factors like moisture, dust, and physical damage. Additionally, it is designed for straightforward installation and maintenance, minimizing downtime and ensuring continuous power supply to consumers.

Features:

Primary Voltage Ratings: 2.4-34.5 kV
Secondary Voltage Ratings: 120/240V; 240/480V;347/600Y;277v;
H.V. TAP RANGE: 2280-36225V
CONNECTION TYPE: Ii0/Ii6
TYPE: Conventional/CSP
BIL: 30-150kV
Standards: IEEE C57.12.20, ANSI C57.12,DOE 2016,CSA C2.1&2.2 &CSA C802.1
Application: Distribution,Ultilities

Transformer Specification

Single-Phase Pole-Mounted Distribution Transformer Advantage

Yokelink utilizes a focus factory concept which leads to a great experience in specific products giving a very high level of consistency in design, manufacture, and test.

Yokelink distribution transformers factories utilize the common design platform giving us best-in-class experience, consistency, and repeatability.

Yokelink utilizes best-in-class manufacturing and quality processes to ensure that our transformers will meet the most stringent requirement.

Single-Phase Pole-Mounted Distribution Transformer Application

Single-phase pole-mounted distribution transformers have a wide range of applications due to their compact size and suitability for single-phase power distribution. Here are some of the key areas where they are commonly used:
Residential Areas:
These transformers are extensively used in residential neighborhoods to step down the high-voltage power from the distribution network to a lower, safer voltage (such as 120/240 volts in North America) suitable for household use.
Rural and Remote Locations:
In rural areas where the population density is low and power demand is relatively small, single-phase pole-mounted transformers are an ideal solution.
Telecommunications and Utility Infrastructure:
Pole-mounted transformers can be used to supply the necessary electricity to these facilities. Additionally, they are used in utility infrastructure to power control panels, meters, and other equipment associated with the distribution network.
