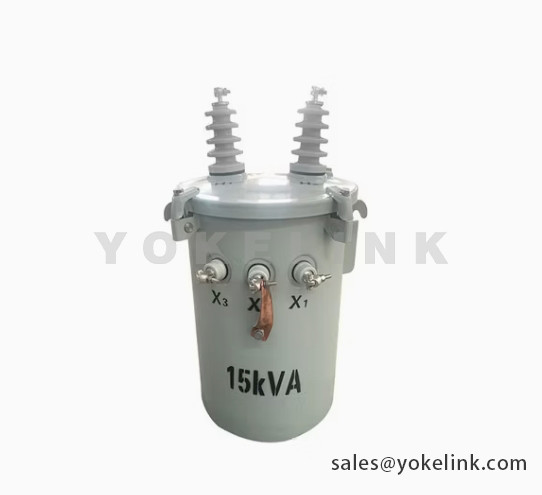

15KVA 7200y/14400 120/240 Single Phase Polemount Transformer Single Phase Pole Mounted Power Transformer for Electronic

Single-Phase Pole-Mounted Distribution Transformer

Yokelink Single-Phase Pole-Mounted Distribution Transformer offers several key features. Firstly, it is compact and designed for easy pole mounting, saving ground space and making it suitable for various urban and rural settings. Its single-phase configuration is ideal for powering residential and small commercial loads.

Features:

Primary Voltage:7200 X 14400
Secondary Voltage:120/240
Frequency (Hz):60
Phase:1
Winding Material:Aluminum
Construction:ONAN
Enclosure Type:Pole Mount
kVA:15 kVA
Efficiency:CAN/CSA C802.1

Specifications

Common single-phase pole-mounted transformers have various specifications. From the perspective of voltage level, the high-voltage side is usually 10kV, 20kV, etc., and the low-voltage side is generally 220V; from the perspective of capacity, there are different options such as 30kVA, 50kVA, 75kVA, and 100kVA. Its technical parameters also include rated current, short-circuit impedance, no-load loss, load loss, etc.



Buy Single-phase Pole Mounted Transformer from YOKELINK

Yokelink provide single-phase pole monted transformers in multiple ratings including 3 5 10 15 25 37.5 50 75 100 167 250 333 KVA, tapping range ± 2x2.5% or others , to 120-240V, 240-480V,250-500V, Power up with YOKELINK's Single-phase Pole Mounted Transformer – the ultimate solution for efficient energy distribution! Featuring high-quality silicon steel cores for reduced energy loss, weather-resistant construction for durability, and compact design for easy pole mounting, this transformer ensures reliable performance in both rural and urban settings. With low maintenance and high efficiency.
