| Place of Origin: | China |
| Brand Name: | Yokelink |
| Model Number: | OEM |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | $1.0-$3.0 |
| Delivery Time: | 35~40 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000pcs per month |
| Material: | Carbon Steel | Brand: | Yokelink |
|---|---|---|---|
| Application: | Pole Line Hardware |

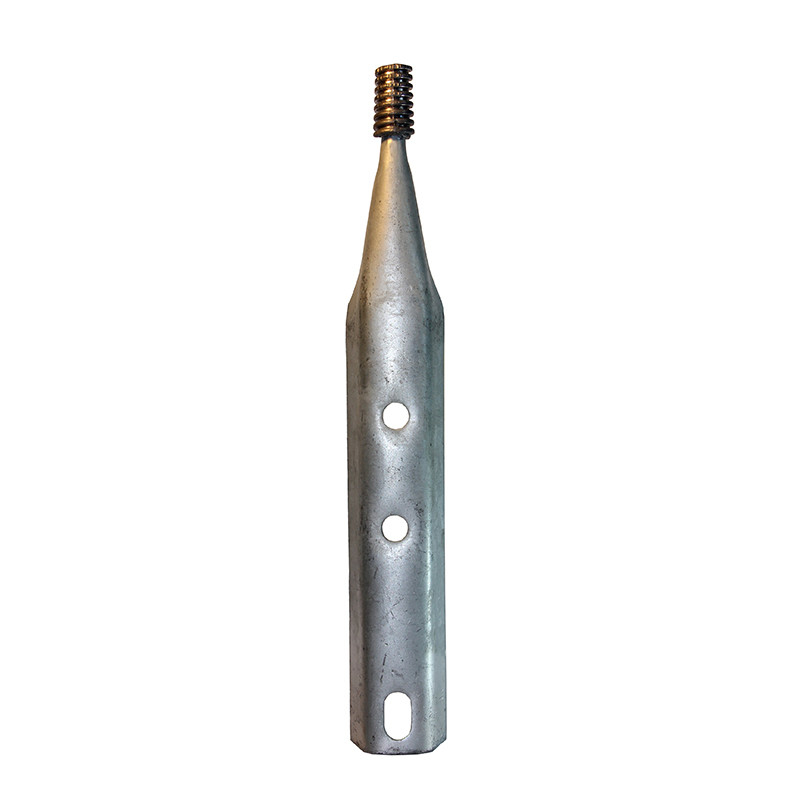

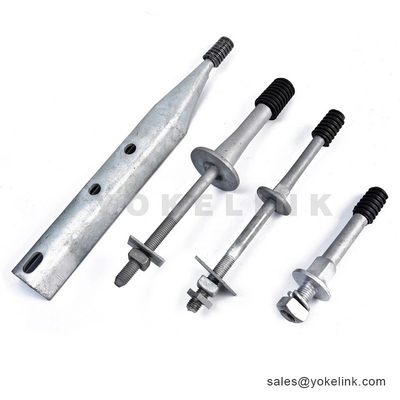

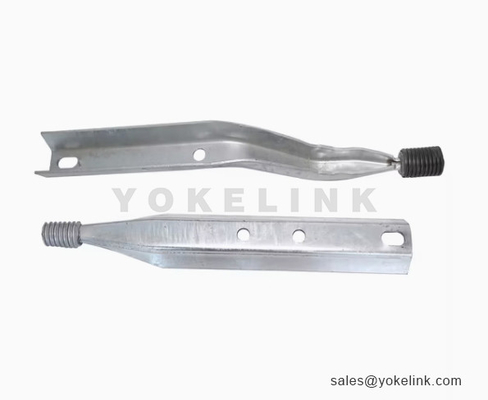

Yokelink pole top pins are essential components in electrical infrastructure. They offer several key features. Constructed from durable materials like high-strength steel or corrosion-resistant alloys, they can withstand harsh environmental conditions. Their precise design ensures a secure fit on utility poles, providing reliable support for Insulators and other electrical equipment. With excellent mechanical strength, they can bear heavy loads and resist mechanical stress. Easy installation saves time and effort during setup. Additionally, their smooth surface reduces the risk of damage to attached wires, enhancing the overall safety and longevity of the electrical system.
1" semi-conductive nylon thread
Two 11/16" mounting holes are spaced at 6"
1,200lbs longitudinal load rating
1,500lbs transverse load rating
Manufactured per ANSI C135.22
Galvanized steel per ASTM A-153

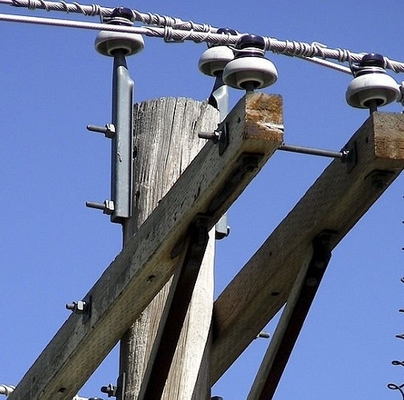

Yokelink pole top pin is used with pin insulators on 11kv/33kv distribution lines, power transmission lines, and overhead power lines.

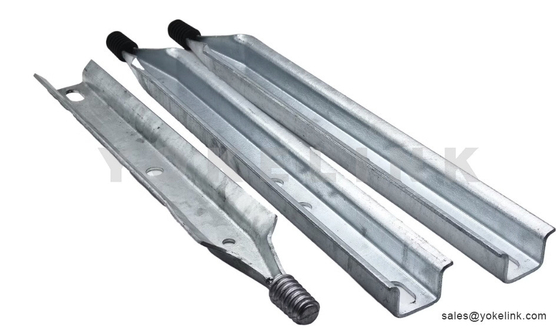

The pole top pin slotted channel sections are mounted against the pole by 5/8-inch bolts. The design of the pole top pin is to allow easy removal for the replacement of insulator units or fittings without the necessity to remove the insulator strings from the cross arms. Yokelink pole top pin has length of 18’’ and 20’’, with 1’’or 1-3/8’’ lead thread. The straight base design has two mounting holes on the base.
